Product Details
＋
DBA 201 (8) mm (in.)
440 W 0.4 Ohm

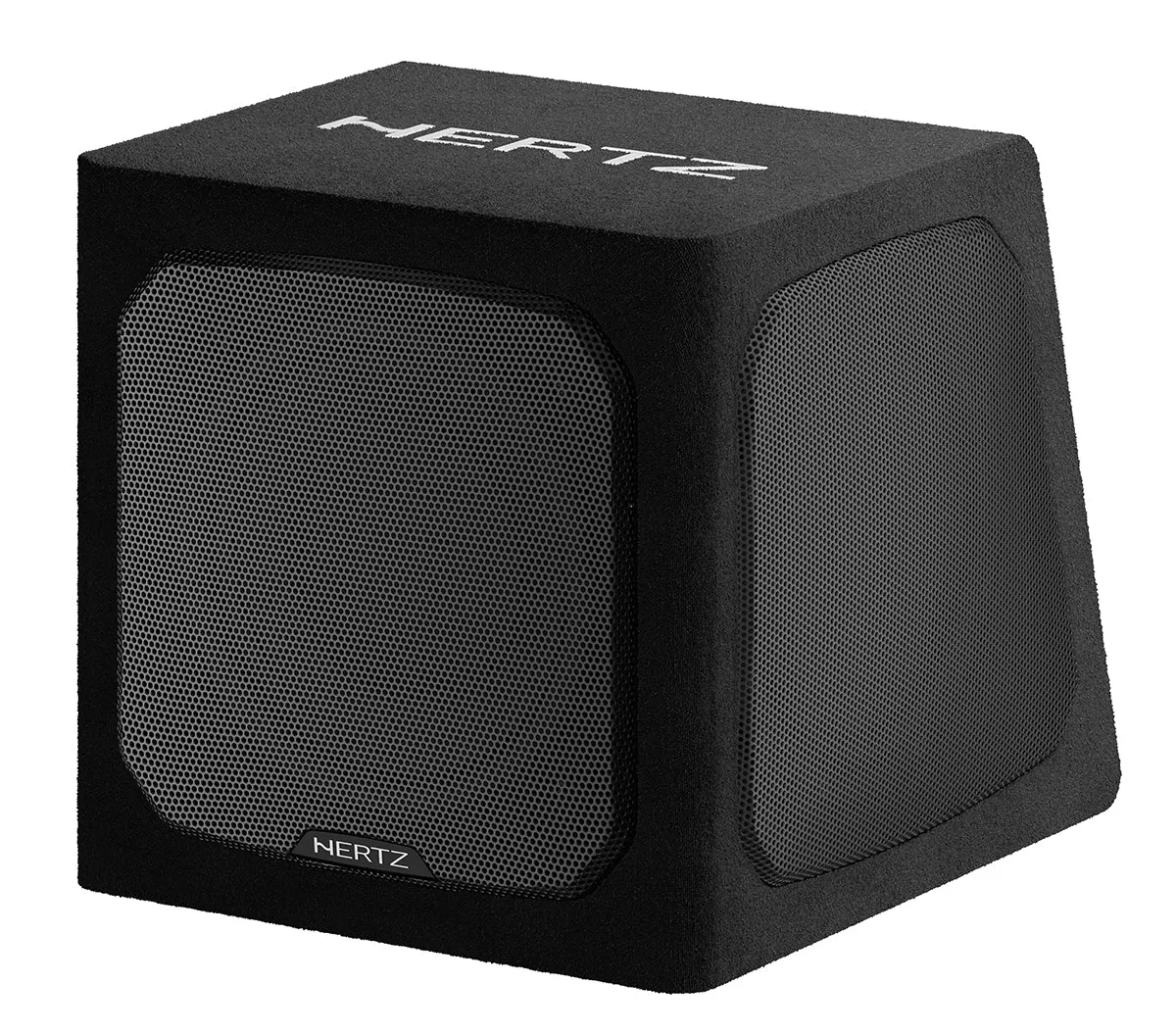

Active subwoofer box with double passive radiators
High performance in a compact stylish design

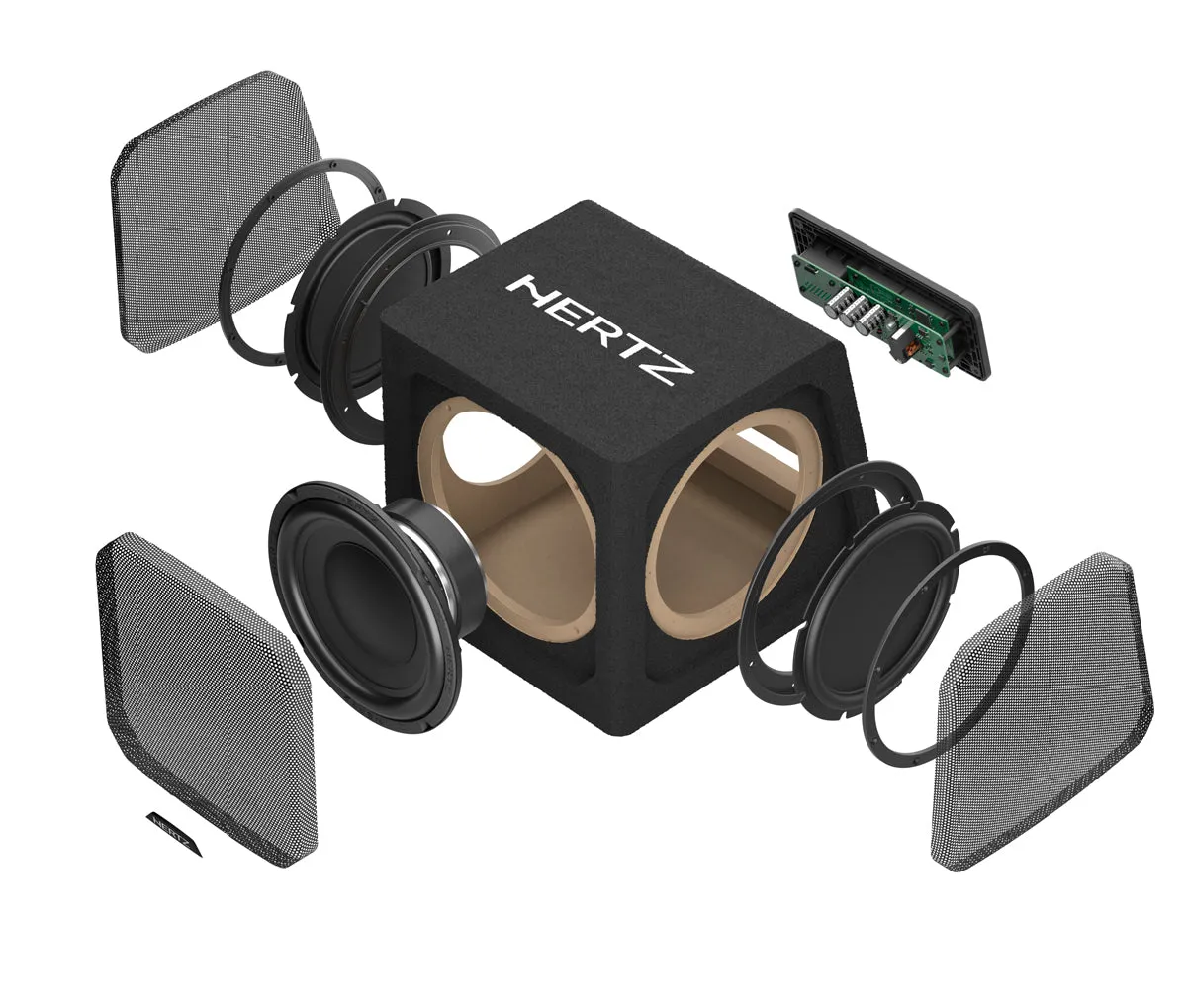

The DBA 201 active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.

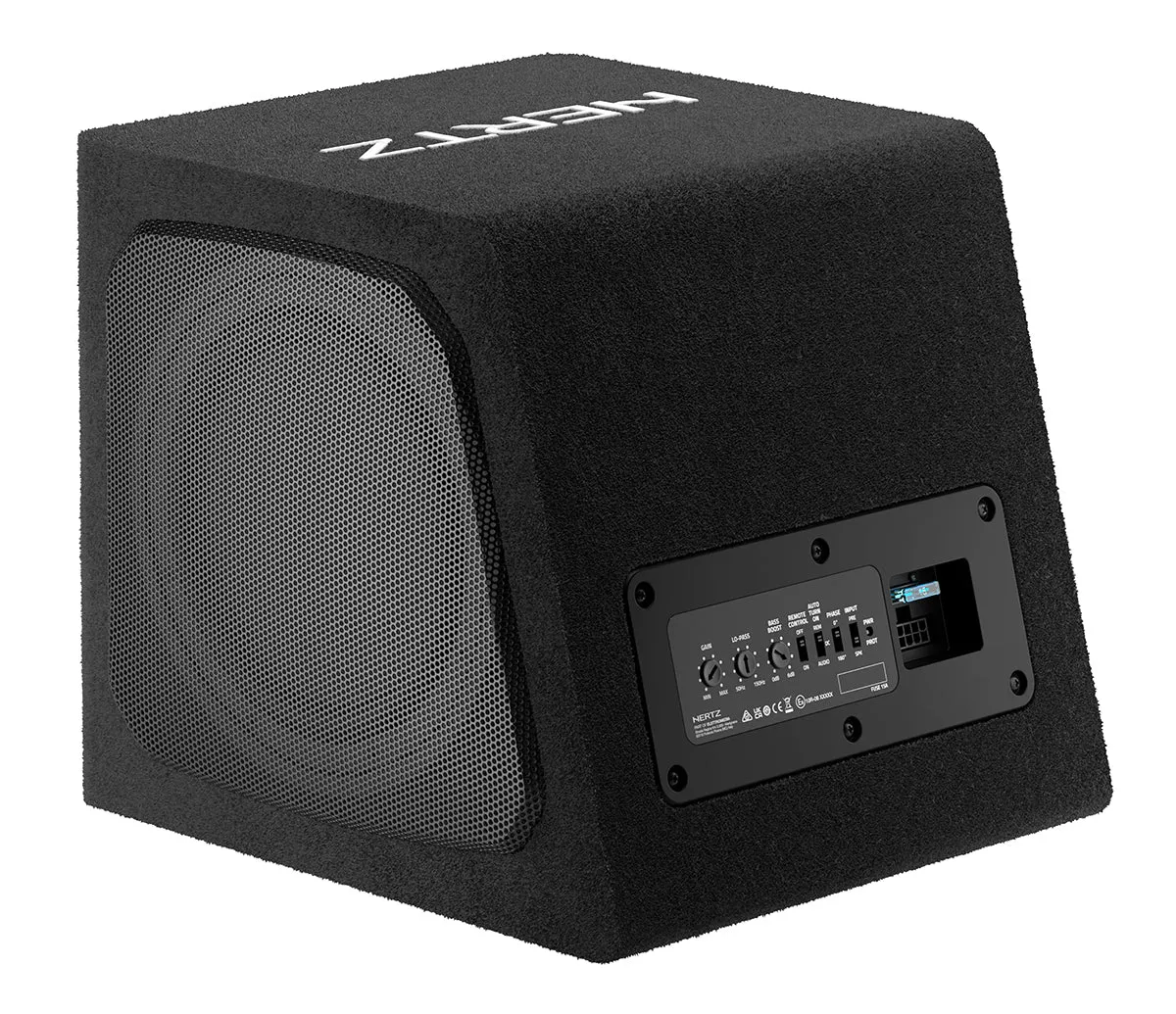

Extra full set of controls to fine-tune the in-car performance
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.
Auto turn-on and standby mode
The built-in audio sense circuit allows the DBA 201 to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.
The DBA 201 active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.
Extra full set of controls to fine-tune the in-car performance
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.
Auto turn-on and standby mode
The built-in audio sense circuit allows the DBA 201 to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.
| Size mm (in.) | 200 (8) |
| Power Handling - Continuous W | 220 |
| Power Handling - Peak W | 440 |
| Impedance Ohm | 0.4 |
| Design | Active subwoofer box with double passive radiators |
| Voice Coil Ø | 38.6 (1.52) mm (in.) |
| Frequency Response Hz | 32 ÷ 400 |
| Magnet size D x d x h mm (in.) | 115 x 47 x 25 (4.5 x 1.8 x 0.98) |
| Weight of one component kg (lb.) | 6.7 (10.54) |
| Magnet | High Density Flux Ferrite |
| Cone | Pressed paper |
| Voice Coil Type | Copper |
| Operating voltage VDC (Fuse) | 6.5 ÷ 18 (15A) |
| Start - Stop voltage VDC | 6 |
| Idling current A (Power OFF) | 260 m (1 m) |
| Consumption @ 14,4 VDC Max musical power A | 8.5 |
| Remote IN Turn on VDC (Current) | 4 (1 mA) |
| PRE input signal Turn ON VRMS | 10 mV |
| SPK input DC Turn ON VDC | 2 |
| Distortion - THD @ 100 Hz % | 0.15 |
| Bandwidth Hz | 15 - 150 |
| S/N ratio dBA | 100 |
| Output power (RMS) @ 14,4 VDC, 1% THD W | 220 |
| PRE input signal VRMS (impedance) | 0.2 ÷ 5 (10kΩ) |
| SPK input signal VRMS (impedance) | 1.2 ÷ 30 (6Ω) |
| LO-PASS Filter @ 24 dB Oct adjustable Hz | 50 ÷ 150 |
| Subsonic Filter @ 24 dB Oct Fixed Hz | 15 |
| Phase switch | 0 / 180° |
| Bass Boost @45 Hz dB | 0 ÷ 6 |

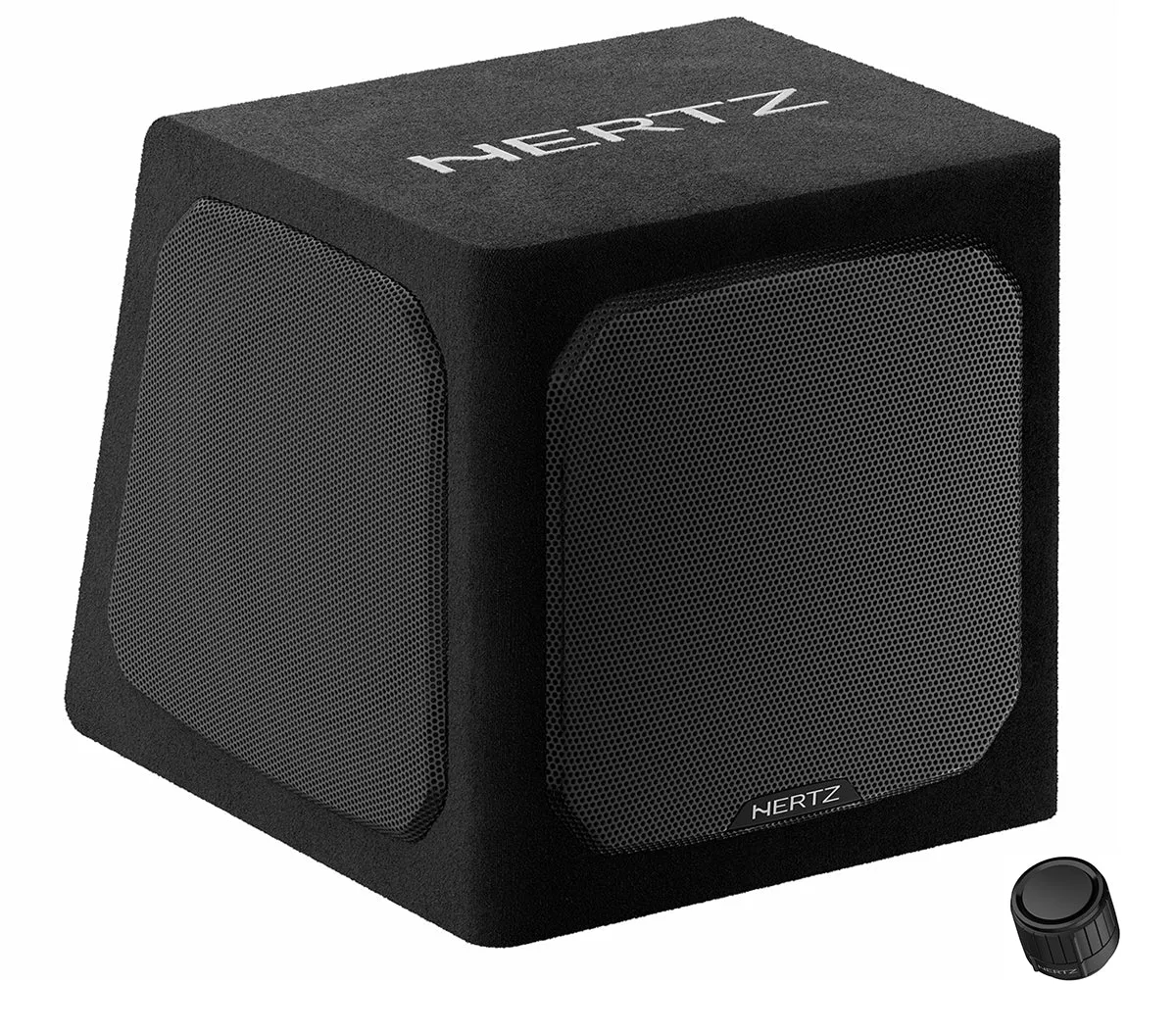

| Sub remote volume control dB | 0 ÷ -15 (HRC 01 included) |
Physical Specs
| mm | in | |
| A | 291 | 11.46 |
| B | 315.5 | 12.42 |
| C | 264 | 10.39 |
