Product Details
＋
ELECTRO-VOICE F.01U.353.818

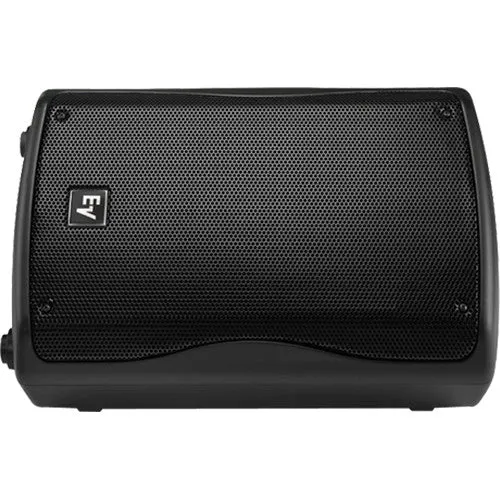

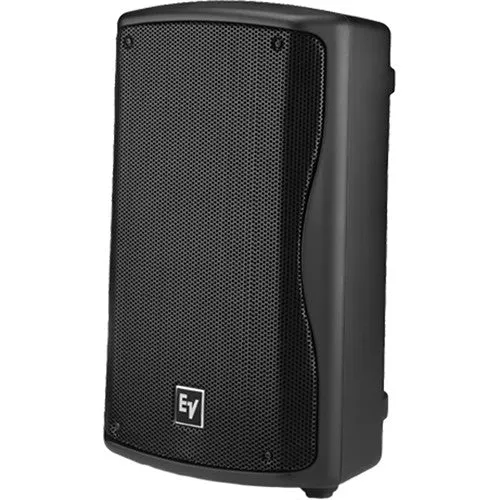

Electro-Voice engineers have raised the bar for portable sound once again, adding to the award-winning ZX loudspeaker family with the new ZXA1 – the self-powered version of the best-selling ZX1 compact two-way loudspeaker. Launching globally at Winter NAMM 2010, ZXA1 is powered by an 800 watt amplifier module derived from EV’s world-tour-class Tour Grade series – amplifiers with audio quality and reliability proven at the very highest levels.
Features
- Designed for Club Sound, Concert Sound, House of Worship, and other applications.
- Integrated 800 watt power amplifier
- Biamplified design with transducer protection
- EV8L 8" high-output LF transducer
- DH2005 1" exit true compression driver
- 90° x 50° coverage pattern
- Rotatable horn design
- 123 dB maximum SPL
- Selectable high-pass filter for use with subwoofers
- Line and microphone inputs
- Integral monitor angle on enclosure

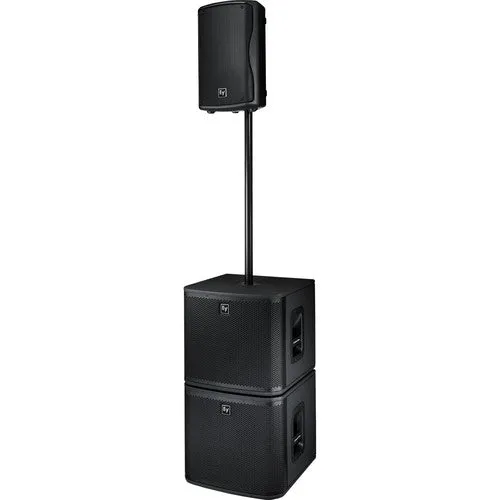

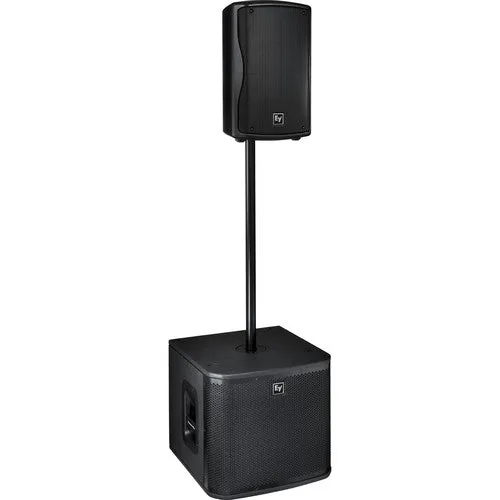

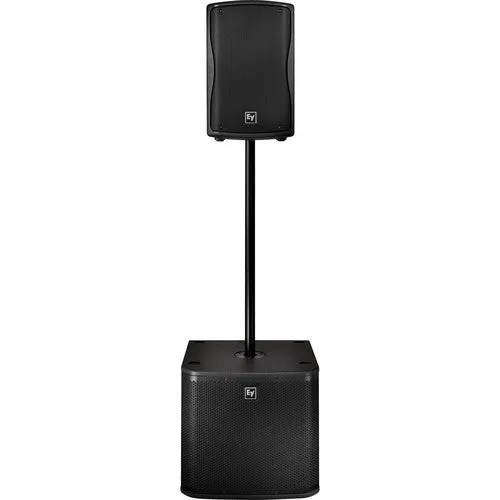

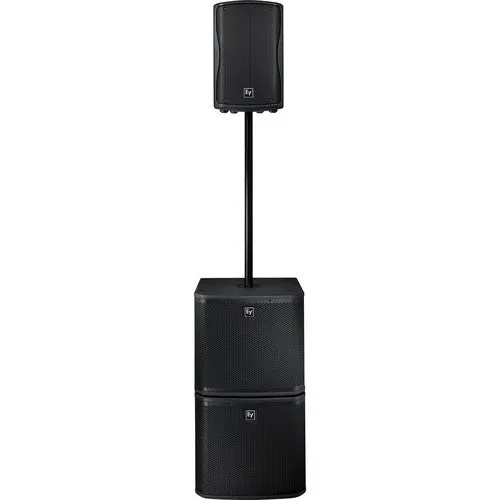

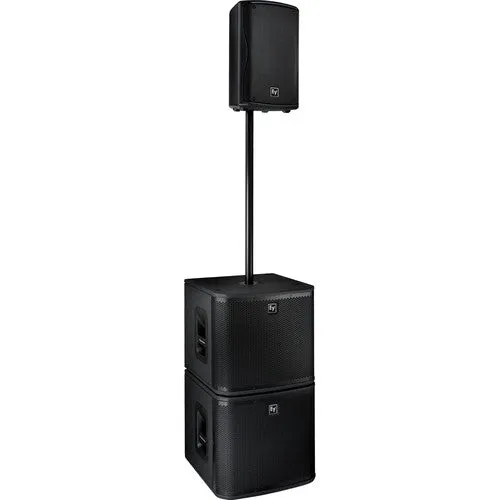

- Built-in pole mount
- Lightweight (< 20 lbs) with integral handle for easy carrying
- Black finish

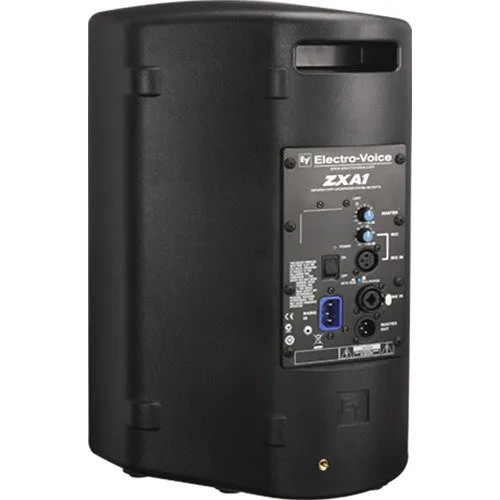

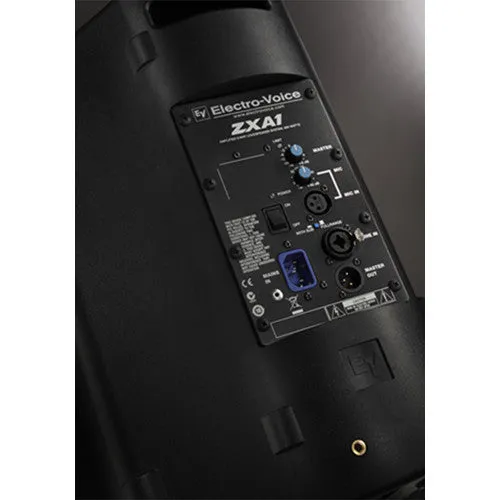

| Input Connections | XLR and TRS Combo; XLR with Independent Gain |
| Power Requirement | 120V: 95V - 132V, 50 - 60 Hz, 0.6A; 230V:190V - 264V, 50 - 60 Hz, 0.4A |
| Frequency Response (-3 dB) | 60 Hz - 20 kHz Hz Full Range Mode |
| Frequency Response (-10 dB) | 48 Hz - 20 kHz Hz Full Range Mode |
| Recommended High-Pass Frequency | 100 Hz User Selectable |
| Max. SPL/1m (calc) | 123 dB |
| LF Transducer | EV8L, 203mm (8 in) Driver |
| HF Transducer | DH2005, 25mm (1 in) Exit Compression Driver |
| Crossover Frequency | 1800 Hz |
| Enclosure Material | High Impact Polystyrene |
| Grill | Polyester Powder Coated, 18GA Galvanized Steel |
| Height | 457 mm (17.99") |
| Width | 282 mm (11.1") |
| Depth | 264 mm (10.39") |
| Weight Net | 8.62 kg (19 lbs) |
| Shipping Weight | 10.3 kg (22.7 lbs) |
